TL071M, TL071 - Low noise JFET single operational amplifier

STMicroelectronics

The TL071M by STMicroelectronics is a Low noise JFET single operational amplifier. Below is the official datasheet preview.

📥 Download Datasheet

TL071M Low noise JFET single operational amplifier by STMicroelectronics - Datasheet Preview — Official preview page of the TL071M Low noise JFET single operational amplifier datasheet (STMicroelectronics).

Datasheet Details

Part number	TL071M, TL071
Manufacturer	STMicroelectronics
File Size	302.48 KB
Description	Low noise JFET single operational amplifier
Datasheet	TL071_STMicroelectronics.pdf
Note	This datasheet PDF includes multiple part numbers: TL071M, TL071. Please refer to the document for exact specifications by model.

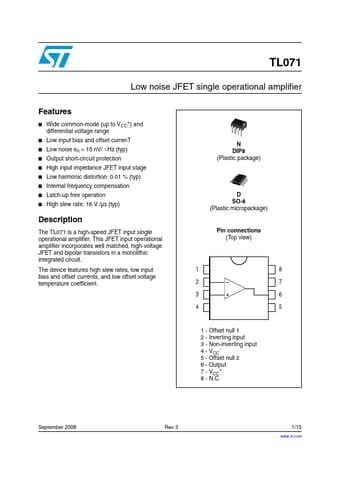

Additional preview pages of the TL071M datasheet.

TL071M Product details

Description

The TL071 is a high-speed JFET input single operational amplifier.

Features

Wide common-mode (up to VCC+) and differential voltage range.
Low input bias and offset currenT.
Low noise en = 15 nV/ √Hz (typ).
Output short-circuit protection.
High input impedance JFET input stage.
Low harmonic distortion: 0.01 % (typ).
Internal frequency compensation.
Latch-up free operation.
High slew rate: 16 V /µs (typ).
