TDA7498E - 160-watt + 160-watt dual BTL class-D audio amplifier

STMicroelectronics

The TDA7498E by STMicroelectronics is a 160-watt + 160-watt dual BTL class-D audio amplifier. Below is the official datasheet preview.

Datasheet Details

Part number	TDA7498E
Manufacturer	STMicroelectronics
File Size	1.19 MB
Description	160-watt + 160-watt dual BTL class-D audio amplifier
Datasheet	TDA7498E-STMicroelectronics.pdf

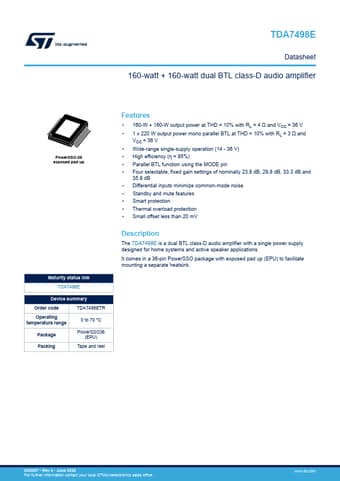

Additional preview pages of the TDA7498E datasheet.

The TDA7498E is a dual BTL class-D audio amplifier with a single power supply designed for home systems and active speaker applications.

160-W + 160-W output power at THD = 10% with RL = 4 Ω and VCC = 36 V.
1 x 220 W output power mono parallel BTL at THD = 10% with RL = 3 Ω and VCC = 36 V.
Wide-range single-supply operation (14 - 36 V).
High efficiency (η = 85%).
Parallel BTL function using the MODE pin.
Four selectable, fixed gain settings of nominally 23.8 dB, 29.8 dB, 33.3 dB and 35.8 dB.
Differential inputs minimize common-mode noise.
Standby and mute fe.
