TDA7417 - Car radio audio processor

STMicroelectronics

The TDA7417 by STMicroelectronics is a Car radio audio processor. Below is the official datasheet preview.

📥 Download Datasheet

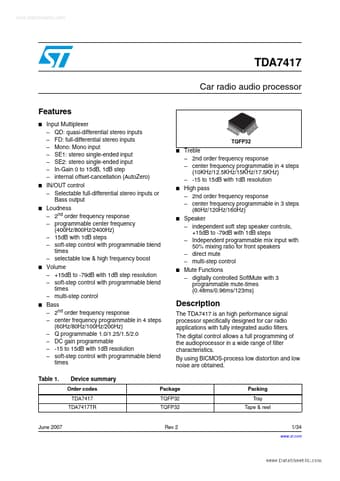

TDA7417 Car radio audio processor by STMicroelectronics - Datasheet Preview — Official preview page of the TDA7417 Car radio audio processor datasheet (STMicroelectronics).

Datasheet Details

Part number	TDA7417
Manufacturer	STMicroelectronics
File Size	482.82 KB
Description	Car radio audio processor
Datasheet	TDA7417_STMicroelectronics.pdf
Additional preview pages of the TDA7417 datasheet.

TDA7417 Product details

Description

The TDA7417 is an high performance signal processor specifically designed for car radio applications with fully integrated audio filters.

Features

Input Multiplexer.
QD: quasi-differential stereo inputs.
FD: full-differential stereo inputs.
Mono: Mono input.
SE1: stereo single-ended input.
SE2: stereo single-ended input.
In-Gain 0 to 15dB, 1dB step.
internal offset-cancellation (AutoZero) IN/OUT control.
Selectable full-differential stereo inputs or Bass output Loudness.
2nd order frequency response.
programmable center frequency (400Hz/800Hz/2.
