T3035H-8I - Snubberless Triac

Description

Specifically designed to operate at 800 V and 150 °C, the T3035H-8I Triac housed in TO-220AB insulated provides an enhanced thermal management: this 30 A Triac is the right choice for a compact drive of heavy AC loads and enables the heatsink size reduction.

Features

  • 30 A high current Triac.
  • 800 V symmetrical blocking voltage.
  • 150 °C maximum junction temperature Tj.
  • Three triggering quadrants.
  • High noise immunity - static dV/dt.
  • Robust dynamic turn-off commutation - (dl/dt)c.
  • ECOPACK2 compliant component.
  • Comply with UL1557 insulation: 2.5 kV.
  • Reference file: E81734.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
T3035H-8G Thyristor INCHANGE
T300 n-channel transducer microphone preamplifiers Siliconix
T300N Phase Control Thyristor Infineon
T3048 T3/DS3/E3/STS-1 TRANSFORMERS Pulse
T3048NL T3/DS3/E3/STS-1 TRANSFORMERS Pulse

Other Datasheets by STMicroelectronics

Part Number Description
T3035H-8G Snubberless Triac
T3035H-8T Snubberless Triac
T3035H Triacs
T3050H Triacs

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

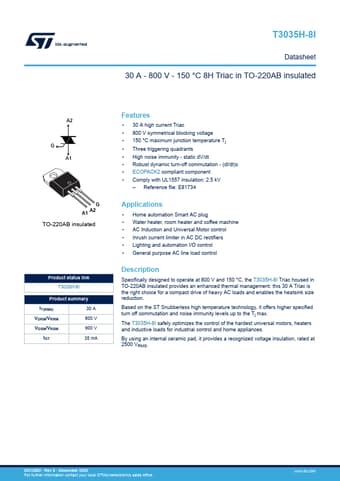

T3035H-8I Datasheet 30 A - 800 V - 150 °C 8H Triac in TO-220AB insulated A2 G A1 G A1 A2 TO-220AB insulated Product status link T3035H-8I Product summary IT(RMS) 30 A VDRM/VRRM 800 V VDSM/VRSM 900 V IGT 35 mA Features • 30 A high current Triac • 800 V symmetrical blocking voltage • 150 °C maximum junction temperature Tj • Three triggering quadrants • High noise immunity - static dV/dt • Robust dynamic turn-off commutation - (dl/dt)c • ECOPACK2 compliant component • Comply with UL1557 insulation: 2.
