STY100NM60N N-CHANNEL Power MOSFET

STY100NM60N Description

STY100NM60N .
This device is an N-channel Power MOSFET developed using the second generation of MDmesh™ technology.

STY100NM60N Features

* N-channel 600 V, 0.028 Ω typ. , 98 A MDmesh™ II Power MOSFET in a Max247 package Datasheet
* production data Type STY100NM60N VDSS @ TJmax 650 V RDS(on) max < 0.029 Ω ID 98 A
* 100% avalanche tested
* Low input capacitance and gate charge
* Low gate input resistance Applica

📥 Download Datasheet

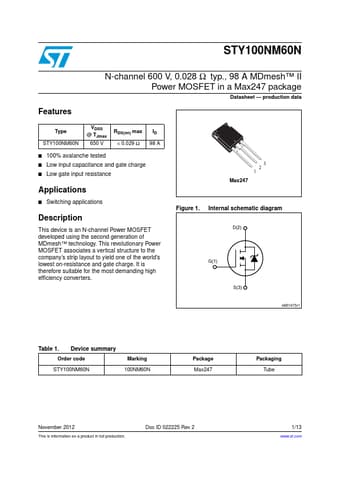

Preview of STY100NM60N PDF
datasheet Preview Page 2 datasheet Preview Page 3
