STW37N60DM2AG - N-channel Power MOSFET

STMicroelectronics

📥 Download Datasheet

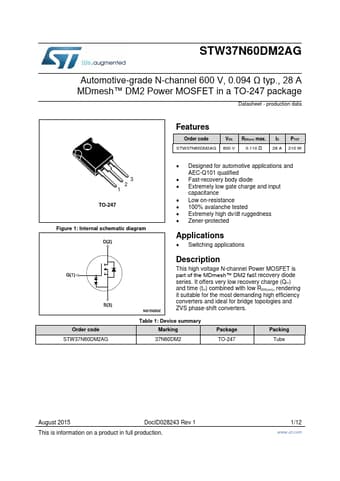

STW37N60DM2AG Datasheet Preview — Preview of STW37N60DM2AG PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	STW37N60DM2AG
Manufacturer	STMicroelectronics ↗
File Size	569.22 KB
Description	N-channel Power MOSFET
Datasheet	STW37N60DM2AG-STMicroelectronics.pdf

STW37N60DM2AG Product details

Description

This high voltage N-channel Power MOSFET is part of the MDmesh™ DM2 fast recovery diode series.

Features

Order code STW37N60DM2AG VDS 600 V RDS(on) max. 0.110 Ω ID 28 A PTOT 210 W 3 2 1 TO-247 Figure 1: Internal schematic diagram.
Designed for automotive.
