STW17N62K3 - N-channel Power MOSFET

STW17N62K3 Description

STF17N62K3 STP17N62K3, STW17N62K3 N-channel 620 V, 0.28 Ω, 15.5 A, TO-220FP, TO-220, TO-247 SuperMESH3™ Power MOSFET .
This SuperMESH3™ Power MOSFET is the result of improvements applied to STMicroelectronics’ SuperMESH™ technology, combined with a new optimized vertic.

STW17N62K3 Features

* Order codes VDSS STF17N62K3 STP17N62K3 STW17N62K3 620 V 620 V 620 V RDS(on) max. ID Pw < 0.34 Ω < 0.34 Ω < 0.34 Ω 15.5 A 40 W 15.5 A 190 W 15.5 A 190 W
* 100% avalanche tested
* Extremely high dv/dt capability
* Gate charge minimized
* Very low intrinsic capacitance
* Im

📥 Download Datasheet

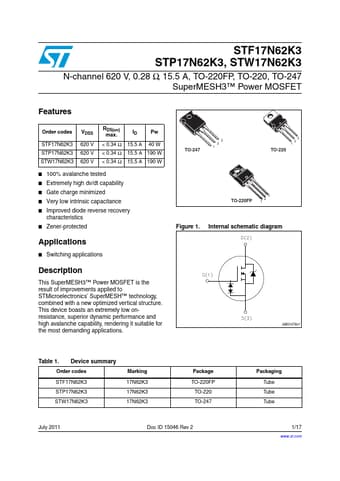

Preview of STW17N62K3 PDF
datasheet Preview Page 2 datasheet Preview Page 3
