STUSBCD01B - USB charger detection interface

Name: STUSBCD01B
SKU: STUSBCD01B-724345

STMicroelectronics

📥 Download Datasheet

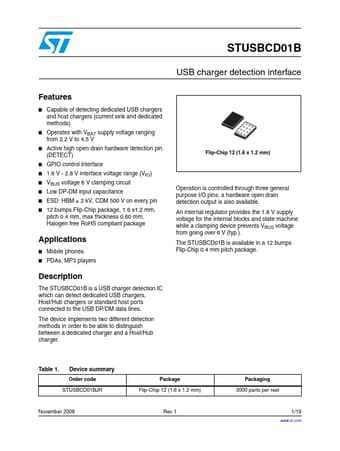

STUSBCD01B Datasheet Preview — Preview of STUSBCD01B PDF

Datasheet Details

Part number	STUSBCD01B
Manufacturer	STMicroelectronics
File Size	534.39 KB
Description	USB charger detection interface
Datasheet	STUSBCD01B_STMicroelectronics.pdf

STUSBCD01B Product details

Description

The STUSBCD01B is a USB charger detection IC which can detect dedicated USB chargers, Host/Hub chargers or standard host ports connected to the USB DP/DM data lines.

Features

Capable of detecting dedicated USB chargers and host chargers (current sink and dedicated methods) Operates with VBAT supply voltage ranging from 2.2 V to 4.5 V Active high open drain hardware detection pin (DETECT) GPIO control interface 1.6 V - 2.8 V interface voltage range (VIO) VBUS voltage 6 V clamping circuit Low DP-DM input capacitance ESD: HBM ± 2 kV, CDM 500 V on every pin 12 bumps Flip-Chip package, 1.6 x1.2 mm, pitch 0.4 mm, max thickness 0.60 mm, Halogen free RoHS compliant pa.
