STU85N3LH5 - N-channel Power MOSFET

STMicroelectronics

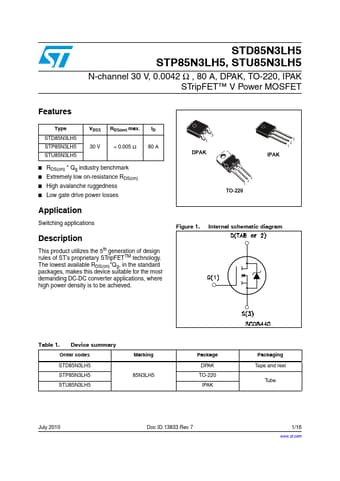

STU85N3LH5 Datasheet Preview — Preview of STU85N3LH5 PDF

Datasheet Details

Part number	STU85N3LH5
Manufacturer	STMicroelectronics ↗
File Size	809.16 KB
Description	N-channel Power MOSFET
Datasheet	STU85N3LH5_STMicroelectronics.pdf

STU85N3LH5 Product details

Description

This product utilizes the 5th generation of design rules of ST’s proprietary STripFETTM technology. Qg, in the standard packages, makes this device suitable for the most demanding DC-DC converter applications, where high power density is to be achieved.

Features

Type STD85N3LH5 STP85N3LH5 STU85N3LH5 VDSS RDS(on) max. ID 30 V < 0.005 Ω 80 A.
RDS(on).
Qg industry benchmark.
Extremely low on-resistance RDS(on).
High avalanche ruggedness.
Low gate drive power losses.
