STU75N3LLH6 N-channel MOSFET

STU75N3LLH6 Description

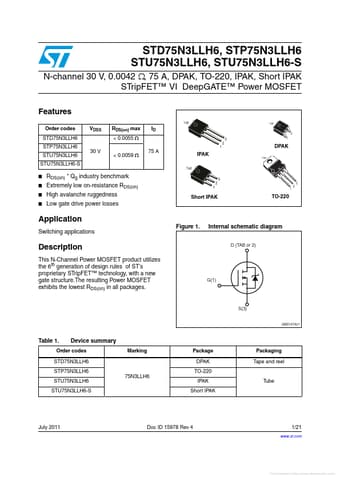

STD75N3LLH6, STP75N3LLH6 STU75N3LLH6, STU75N3LLH6-S N-channel 30 V, 0.0042 Ω, 75 A, DPAK, TO-220, IPAK, Short IPAK STripFET™ VI DeepGATE™ Power MOSFET.
This N-Channel Power MOSFET product utilizes the 6th generation of design rules of ST’s proprietary STripFET™ technology, with a new gate structure.

STU75N3LLH6 Features

* TAB TAB Order codes STD75N3LLH6 STP75N3LLH6 STU75N3LLH6 STU75N3LLH6-S VDSS RDS(on) max < 0.0055 Ω ID 3 2 1 1 3 DPAK TAB 30 V < 0.0059 Ω 75 A IPAK TAB
* RDS(on)
* Qg industry benchmark Extremely low on-resistance RDS(on) High avalanche ruggedness Low gate drive p
