STU60N3LH5 - N-channel Power MOSFET

Description

This STripFET™V Power MOSFET technology is among the latest improvements, which have been especially tailored to achieve very low on-state resistance providing also one of the best-in-class FOM.

Figure 1.

Table 1.

Features

  • Type STD60N3LH5 STP60N3LH5 STU60N3LH5 VDSS 30 V 30 V 30 V RDS(on) max 0.008 Ω 0.0084 Ω 0.0084 Ω ID 48 A 48 A 48 A.
  • RDS(on).
  • Qg industry benchmark.
  • Extremely low on-resistance RDS(on).
  • Very low switching gate charge.
  • High avalanche ruggedness.
  • Low gate drive power losses.

📥 Download Datasheet

Datasheet preview – STU60N3LH5

Datasheet Details

Part number STU60N3LH5
Manufacturer STMicroelectronics
File Size 347.06 KB
Description N-channel Power MOSFET
Datasheet download datasheet STU60N3LH5 Datasheet
Additional preview pages of the STU60N3LH5 datasheet.

📁 Similar Datasheet

  • STU600S - N-Channel Enhancement Mode Field Effect Transistor (SamHop Microelectronics)
  • STU6010 - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR (EIC discrete Semiconductors)
  • STU601S - P-Channel Logic Level Enhancement Mode Field Effect Transistor (SamHop Microelectronics)
  • STU6025NL - N-Channel Logic Level Enhancement Mode Field Effect Transistor (SamHop Microelectronics)
  • STU6025NLS - N-Channel Logic Level Enhancement Mode Field Effect Transistor (SamHop Microelectronics)
  • STU602S - N-Channel Enhancement Mode Field Effect Transistor (SamHop Microelectronics)
  • STU606S - N-Channel Logic Level Enhancement Mode Field Effect Transistor (SamHop Microelectronics)
  • STU607S - N-Channel Enhancement Mode Field Effect Transistor (SamHop Microelectronics)
  • STU612D - Dual Enhancement Mode Field Effect Transistor (SamHop)
  • STU616S - N-Channel Logic Level Enhancement Mode Field Effect Transistor (SamHop Microelectronics)
Other Datasheets by STMicroelectronics

Full PDF Text Transcription

Click to expand full text

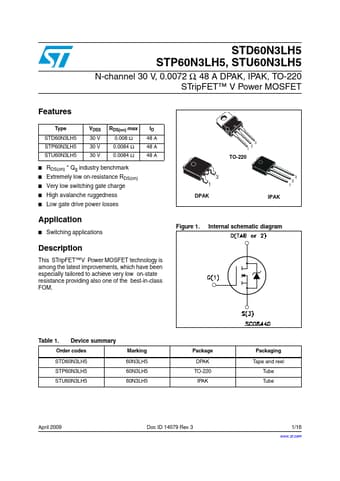

STD60N3LH5 STP60N3LH5, STU60N3LH5 N-channel 30 V, 0.0072 Ω, 48 A DPAK, IPAK, TO-220 STripFET™ V Power MOSFET Features Type STD60N3LH5 STP60N3LH5 STU60N3LH5 VDSS 30 V 30 V 30 V RDS(on) max 0.008 Ω 0.0084 Ω 0.0084 Ω ID 48 A 48 A 48 A ■ RDS(on) * Qg industry benchmark ■ Extremely low on-resistance RDS(on) ■ Very low switching gate charge ■ High avalanche ruggedness ■ Low gate drive power losses Application ■ Switching applications Description This STripFET™V Power MOSFET technology is among the latest improvements, which have been especially tailored to achieve very low on-state resistance providing also one of the best-in-class FOM. 3 2 1 TO-220 3 1 DPAK 3 2 1 IPAK Figure 1. Internal schematic diagram Table 1.
