STU11NM60ND Power MOSFET

STU11NM60ND Description

STD11NM60ND, STF/I11NM60ND STP11NM60ND, STU11NM60ND N-channel 600 V, 0.37 Ω, 10 A, FDmesh™ II Power MOSFET I2PAK, TO-220, TO-220FP, IPAK, DPAK Featur.
The device is an N-channel FDmesh™ II Power MOSFET that belongs to the second generation of MDmesh™ technology.

STU11NM60ND Features

* Order codes VDSS (@Tjmax) RDS(on) max ID STD11NM60ND STF11NM60ND STI11NM60ND STP11NM60ND STU11NM60ND 650 V < 0.45 Ω 10 A 10 A(1) 10 A 10 A 10 A 1. Limited only by maximum temperature allowed
* The worldwide best RDS(on)
* area amongst the fast recovery diode devices
* 100% avalanch

📥 Download Datasheet

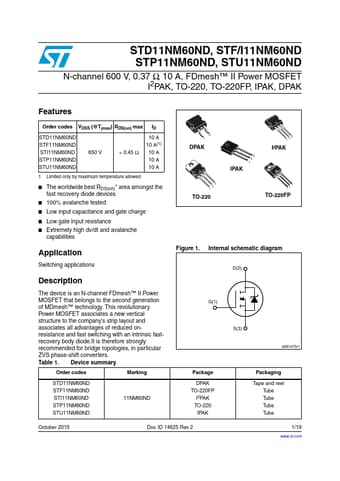

Preview of STU11NM60ND PDF
datasheet Preview Page 2 datasheet Preview Page 3
