STTH1L06U, STTH1L06, TURBO 2 ULTRAFAST HIGH VOLTAGE RECTIFIER

STTH1L06 Turbo 2 ultrafast high voltage rectifier .
The STTH1L06/U/A, which is using ST Turbo 2 600 V technology, is specially suited as boost diode in discontinuous or critical mode power factor correc.

STTH1L06_STMicroelectronics.pdf

STTH1L06U Datasheet Preview — This datasheet PDF includes multiple part numbers: STTH1L06U, STTH1L06. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

STTH1L06U, STTH1L06

Manufacturer:

STMicroelectronics ↗

File Size:

108.91 KB

Description:

TURBO 2 ULTRAFAST HIGH VOLTAGE RECTIFIER

Note:

This datasheet PDF includes multiple part numbers: STTH1L06U, STTH1L06.
Please refer to the document for exact specifications by model.

Features

* Ultrafast switching
* Low reverse recovery current
* Reduces switching and conduction losses

Applications

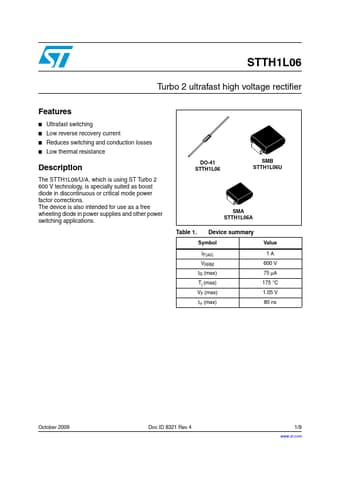

* DO-41 STTH1L06 SMB STTH1L06U SMA STTH1L06A Table 1. Device summary Symbol IF(AV) VRRM IR (max) Tj (max) VF (max) trr (max) Value 1A 600 V 75 µA 175 °C 1.05 V 80 ns October 2009 Doc ID 8321 Rev 4 1/9 www. st. com 9 Characteristics 1 Characteristics STTH1L06 Table 2. Absolute ratings (li
