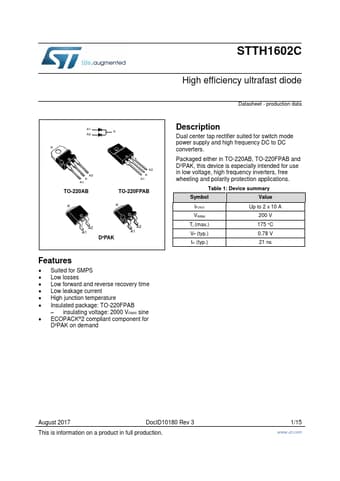

STTH1602CT, STTH1602C High efficiency ultrafast diode

STTH1602CT Description

STTH1602C A1 K A2 K A2 K A1 TO-220AB K A2 K A1 TO-220FPAB K A2 A1 D²PAK A2 A1 .
Dual center tap rectifier suited for switch mode power supply and high frequency DC to DC converters.

STTH1602CT Features

* Suited for SMPS
* Low losses
* Low forward and reverse recovery time
* Low leakage current
* High junction temperature
* Insulated package: TO-220FPAB  insulating voltage: 2000 VRMS sine
* ECOPACK®2 compliant component for D²PAK on demand High efficiency ultrafast dio

STTH1602CT Applications

* Table 1: Device summary Symbol Value IF(AV) VRRM Tj (max. ) VF (typ. ) trr (typ. ) Up to 2 x 10 A 200 V 175 °C 0.78 V 21 ns August 2017 DocID10180 Rev 3 This is information on a product in full production. 1/15 www. st. com Characteristics STTH1602C 1 Characteristics Table 2: Absolute rati

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STTH1602CT, STTH1602C. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STTH1602CT, STTH1602C
Manufacturer
STMicroelectronics ↗
File Size
380.94 KB
Datasheet
STTH1602C_STMicroelectronics.pdf
Description
High efficiency ultrafast diode
Note
This datasheet PDF includes multiple part numbers: STTH1602CT, STTH1602C.
Please refer to the document for exact specifications by model.
