STTH1302CG, STTH1302xxx - HIGH EFFICIENCY ULTRAFAST DIODE

STMicroelectronics

📥 Download Datasheet

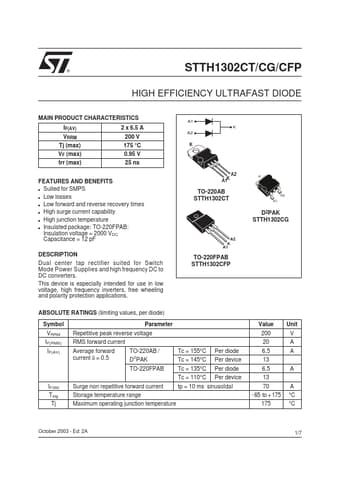

STTH1302CG Datasheet Preview — This datasheet PDF includes multiple part numbers: STTH1302CG, STTH1302xxx. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	STTH1302CG, STTH1302xxx
Manufacturer	STMicroelectronics ↗
File Size	114.65 KB
Description	HIGH EFFICIENCY ULTRAFAST DIODE
Datasheet	STTH1302xxx_STMicroelectronics.pdf
Note	This datasheet PDF includes multiple part numbers: STTH1302CG, STTH1302xxx. Please refer to the document for exact specifications by model.

STTH1302CG Product details

Description

Dual center tap rectifier suited for Switch Mode Power Supplies and high frequency DC to DC converters.

Features

s Suited for SMPS s Low losses s Low forward and reverse recovery times s High surge current capability s High junction temperature s Insulated package: TO-220FPAB: Insulation voltage = 2000 VDC Capacitance = 12 pF.
