STTH112-Y Automotive high voltage ultrafast rectifier

STTH112-Y Description

STTH112-Y Automotive high voltage ultrafast rectifier AK A K SMBflat STTH112UFY .
The STTH112-Y, which is using ST’s new 1200 V planar technology, is especially suited for switching mode base drive and transistor circuits.

STTH112-Y Features

* Very low conduction losses
* Negligible switching losses
* Low forward and reverse recovery times
* High junction temperature
* AEC-Q101 qualified

STTH112-Y Applications

* in automotive functions. Table 1. Device summary Symbol Value IF(AV) VRRM Tj (max) VF (typ) Trr (typ) 1A 1200 V 175 °C 1.1 V 53 ns February 2014 This is information on a product in full production. DocID025888 Rev 1 1/7 www. st. com Characteristics 1 Characteristics STTH112-Y Table 2. Absol

📥 Download Datasheet

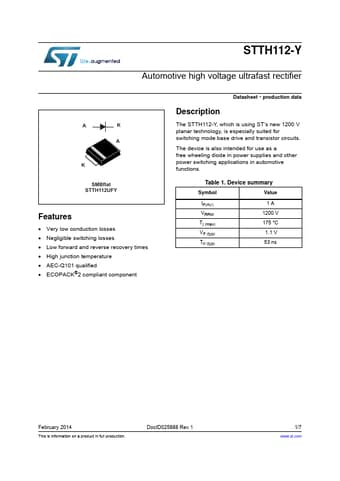

Preview of STTH112-Y PDF
datasheet Preview Page 2 datasheet Preview Page 3
