STTA6006TV2 - ULTRA-FAST HIGH VOLTAGE DIODE

Download the STTA6006TV2 datasheet PDF (STTA6006P included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for ultra-fast high voltage diode.

Description

The TURBOSWITCH is a very high performance series of ultra-fast high voltage power diodes from 600V to 1200V.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (STTA6006P_STMicroelectronics.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • STTA6006TV1 - ULTRAFAST HIGH VOLTAGE DIODE (INCHANGE)
  • STTA6xx - (STT Series) Crystal Clock Oscillator (SaRonix)
  • STTA106 - TURBOSWITCH a ULTRA-FAST HIGH VOLTAGE DIODE (ST Microelectronics)
  • STTA106U - TURBOSWITCH a ULTRA-FAST HIGH VOLTAGE DIODE (ST Microelectronics)
  • STTA112U - TURBOSWITCH ULTRA-FAST HIGH VOLTAGE DIODE (ST Microelectronics)
  • STTA12006P - (STTA12006xx) TURBOSWITCH ULTRA-FAST HIGH VOLTAGE DIODE (ST Microelectronics)
  • STTA12006TV1 - (STTA12006xx) TURBOSWITCH ULTRA-FAST HIGH VOLTAGE DIODE (ST Microelectronics)
  • STTA12006TV2 - (STTA12006xx) TURBOSWITCH ULTRA-FAST HIGH VOLTAGE DIODE (ST Microelectronics)
  • STTA1206D - Ultrafast Rectifier (INCHANGE)
  • STTA1206D - (STTA1206xx) TURBOSWITCH ULTRA-FAST HIGH VOLTAGE DIODE (ST Microelectronics)
Other Datasheets by STMicroelectronics
  • STTA6006TV1 - ULTRA-FAST HIGH VOLTAGE DIODE
  • STTA1206DI - TURBOSWITCH ULTRA-FAST HIGH VOLTAGE DIODE
  • STTA2006P - ULTRA-FAST HIGH VOLTAGE DIODE
  • STTA2006PI - ULTRA-FAST HIGH VOLTAGE DIODE
  • STTA206S - A ULTRA-FAST HIGH VOLTAGE DIODE
  • STTA212S - ULTRA-FAST HIGH VOLTAGE DIODE
  • STTA406 - ULTRA-FAST HIGH VOLTAGE DIODE
  • STTA806D - TURBOSWITCH ULTRA-FAST HIGH VOLTAGE DIODE

Full PDF Text Transcription

Click to expand full text

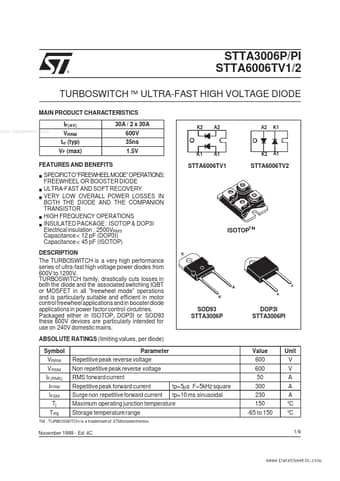

® STTA3006P/PI STTA6006TV1/2 TURBOSWITCH ™ ULTRA-FAST HIGH VOLTAGE DIODE MAIN PRODUCT CHARACTERISTICS IF(AV) www.DataSheet4U.com 30A / 2 x 30A 600V 35ns 1.5V K2 A2 A2 K1 VRRM trr (typ) VF (max) K1 A1 K2 A1 FEATURES AND BENEFITS SPECIFICTO”FREEWHEELMODE”OPERATIONS: FREEWHEEL OR BOOSTER DIODE ULTRA-FAST AND SOFT RECOVERY VERY LOW OVERALL POWER LOSSES IN BOTH THE DIODE AND THE COMPANION TRANSISTOR HIGH FREQUENCY OPERATIONS INSULATED PACKAGE : ISOTOP & DOP3I Electrical insulation : 2500VRMS Capacitance < 12 pF (DOP3I) Capacitance < 45 pF (ISOTOP) DESCRIPTION The TURBOSWITCH is a very high performance series of ultra-fast high voltage power diodes from 600V to 1200V.
