STR755FR0, STR750FV0 - 32-bit MCU

STMicroelectronics

📥 Download Datasheet

STR755FR0 Datasheet Preview — This datasheet PDF includes multiple part numbers: STR755FR0, STR750FV0. Please refer to the document for exact specifications by model.

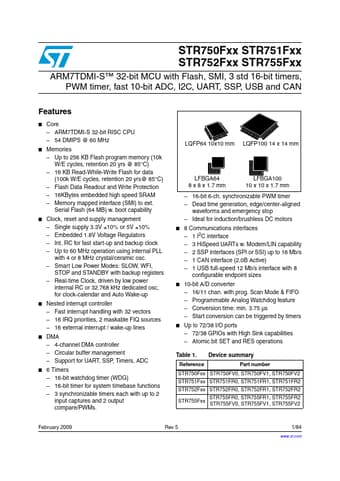

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	STR755FR0, STR750FV0
Manufacturer	STMicroelectronics ↗
File Size	886.46 KB
Description	32-bit MCU
Datasheet	STR750FV0-STMicroelectronics.pdf
Note	This datasheet PDF includes multiple part numbers: STR755FR0, STR750FV0. Please refer to the document for exact specifications by model.

STR755FR0 Product details

Description

. . . 5 3.2 Block diagram .

Features

Core.
ARM7TDMI-S 32-bit RISC CPU.
54 DMIPS @ 60 MHz.
Memories.
Up to 256 KB Flash program memory (10k W/E cycles, retention 20 yrs @ 85°C).
16 KB Read-While-Write Flash for data (100k W/E cycles, retention 20 yrs@ 85°C).
Flash Data Readout and Write Protection.
16KBytes embedded high speed SRAM.
Memory mapped interface (SMI) to ext. Serial Flash (64 MB) w. boot capability.
Clock, reset and supply management.
