STPST8H100-Y Automotive power Schottky trench rectifier

STPST8H100-Y Description

Product label Product status link STPST8H100-Y Product summary IF(AV) 8A VRRM 100 V Tj (max.) 175 °C VF (typ.) 0.560 V STPST8H100-Y Datashe.
This 8 A, 100 V rectifier is based on ST trench technology that achieves the best-inclass VF/IR trade-off for a given silicon surface.

STPST8H100-Y Features

* AEC-Q101 qualified
* PPAP capable
* Low forward voltage drop
* Low recovery charges
* Reduces conduction, reverse and switching losses
* 100% Avalanche tested in production
* Operating Tj from -40 °C to +175 °C
* Flat packages

STPST8H100-Y Applications

* Automotive LED lighting
* Flyback topology
* On-board DC/DC converter

📥 Download Datasheet

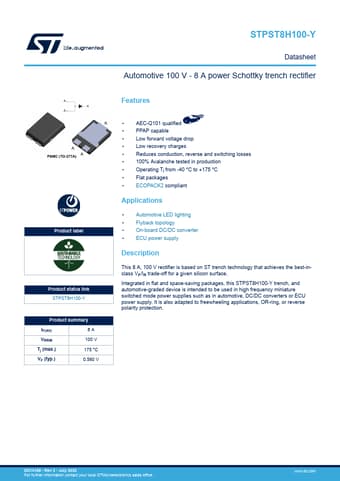

Preview of STPST8H100-Y PDF
datasheet Preview Page 2 datasheet Preview Page 3
