STPS8H100G, STPS8H100 High voltage power Schottky rectifier

STPS8H100G Description

STPS8H100 High voltage power Schottky rectifier Datasheet - production data A K K K A TO-220AC K A NC A NC D2PAK A TO-220FPAC K .
Schottky barrier rectifier designed for high frequency compact switched mode power supplies such as adaptors and on-board DC-DC converters.

STPS8H100G Features

* Negligible switching losses
* High junction temperature capability
* Low leakage current
* Good trade off between leakage current and forward voltage drop
* Insulated package:  TO-220FPAC, insulating voltage = 2000 VRMS sine
* Avalanche capability specified
* ECOPACK®2

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STPS8H100G, STPS8H100. Please refer to the document for exact specifications by model.

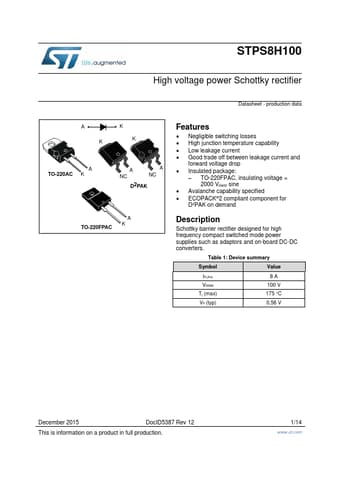

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STPS8H100G, STPS8H100
Manufacturer
STMicroelectronics ↗
File Size
528.00 KB
Datasheet
STPS8H100_STMicroelectronics.pdf
Description
High voltage power Schottky rectifier
Note
This datasheet PDF includes multiple part numbers: STPS8H100G, STPS8H100.
Please refer to the document for exact specifications by model.
