STPS80A150CHR Schottky rectifier

STPS80A150CHR Description

STPS80A150CHR Datasheet Rad-Hard 2 x 40 A - 150 V Schottky rectifier S3T3P5S1880A150CSA1 FR SMD.5 The upper metallic lid is not internally connected .
The STPS80A150CHR is package and screened to comply with the ESCC5000 specification for Rad-Hard products.

STPS80A150CHR Features

* Forward current: 2 x 40 A
* Repetitive peak reverse voltage: 150 V
* Low forward voltage drop: 0.88 V max. at 80 A / 125 °C
* dV/dt up to 10 kV/µs
* Monolithic dual die - common cathode
* Ceramic hermetic package
* TID and SEE characterized

STPS80A150CHR Applications

* It is ESCC qualified. The complete ESCC specification for this device is available from the European Space Agency web site. ST guarantees full compliance of qualified parts with the ESCC detailed specification. Product status link STPS80A150CHR Product summary IF(AV) 2 x 40 A VRRM 150 V Tj(m

📥 Download Datasheet

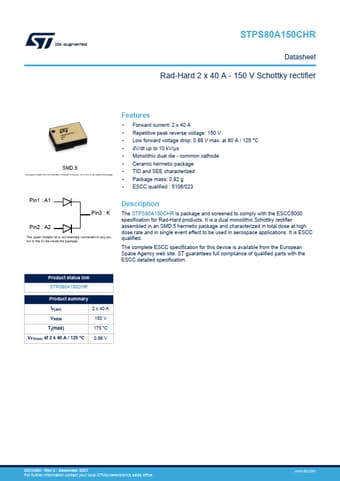

Preview of STPS80A150CHR PDF
