STPS745FP, STPS745 Datasheet - STMicroelectronics

STPS745FP, STPS745, Power Schottky rectifier

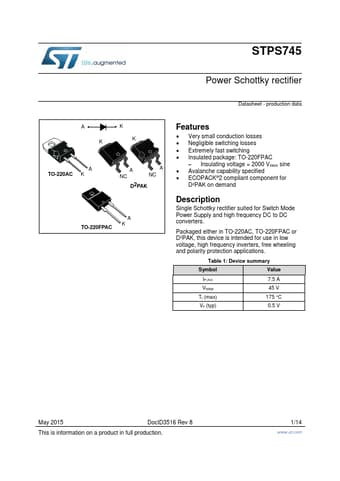

STPS745 Power Schottky rectifier Datasheet - production data A K K K A TO-220AC K A NC A NC D2PAK A TO-220FPAC K .
Single Schottky rectifier suited for Switch Mode Power Supply and high frequency DC to DC converters.

STPS745_STMicroelectronics.pdf

STPS745FP Datasheet Preview — This datasheet PDF includes multiple part numbers: STPS745FP, STPS745. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

STPS745FP, STPS745

Manufacturer:

STMicroelectronics ↗

File Size:

511.32 KB

Description:

Power Schottky rectifier

Note:

This datasheet PDF includes multiple part numbers: STPS745FP, STPS745.
Please refer to the document for exact specifications by model.

Features

* Very small conduction losses
* Negligible switching losses
* Extremely fast switching
* Insulated package: TO-220FPAC  Insulating voltage = 2000 VRMS sine
* Avalanche capability specified

Applications

* Table 1: Device summary Symbol Value IF(AV) VRRM Tj (max) VF (typ) 7.5 A 45 V 175 °C 0.5 V May 2015 DocID3516 Rev 8 This is information on a product in full production. 1/14 www. st. com Characteristics STPS745 1 Characteristics Table 2: Absolute ratings (limiting values, at 25 °C, unle
