STPS6M100SF - 100V power Schottky rectifier

Description

This high voltage Schottky barrier rectifier has been optimized for use in high frequency miniature DC/DC converters, reverse battery protection, battery chargers and adaptors.

Features

  • Low profile design.
  • package height of 1.1 mm typ.
  • Wettable flanks for automatic visual inspection.
  • Low forward voltage drop.
  • Avalanche capability.

📥 Download Datasheet

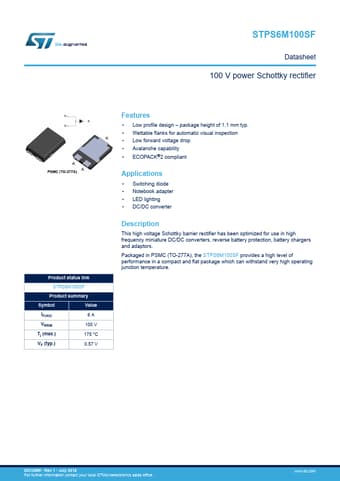

Datasheet preview – STPS6M100SF

Datasheet Details

Part number STPS6M100SF
Manufacturer STMicroelectronics
File Size 317.93 KB
Description 100V power Schottky rectifier
Datasheet download datasheet STPS6M100SF Datasheet
Additional preview pages of the STPS6M100SF datasheet.

📁 Similar Datasheet

  • STPS60150C - 150V power Schottky rectifier (ST Microelectronics)
  • STPS60170CT - Schottky Barrier Rectifier (Inchange Semiconductor)
  • STPS6030CW - LOW DROP POWER SCHOTTKY RECTIFIER (ST Microelectronics)
  • STPS6045 - Power Schottky Rectifier (ST Microelectronics)
  • STPS60H100C - 100V power Schottky rectifier (ST Microelectronics)
  • STPS60L15CW - LOW DROP OR-ing POWER SCHOTTKY DIODE (ST Microelectronics)
  • STPS60L30CW - LOW DROP POWER SCHOTTKY RECTIFIER (ST Microelectronics)
  • STPS60L40CW - LOW DROP POWER SCHOTTKY RECTIFIER (ST Microelectronics)
  • STPS60L45CW - LOW DROP POWER SCHOTTKY RECTIFIER (ST Microelectronics)
  • STPS61150CW - power Schottky rectifier (ST Microelectronics)
Other Datasheets by STMicroelectronics

Full PDF Text Transcription

Click to expand full text
STPS6M100SF Datasheet 100 V power Schottky rectifier Product status link STPS6M100SF Product summary Symbol Value IF(AV) 6A VRRM 100 V Tj (max.) 175 °C VF (typ.) 0.57 V Features • Low profile design – package height of 1.1 mm typ. • Wettable flanks for automatic visual inspection • Low forward voltage drop • Avalanche capability • ECOPACK®2 compliant Applications • Switching diode • Notebook adapter • LED lighting • DC/DC converter Description This high voltage Schottky barrier rectifier has been optimized for use in high frequency miniature DC/DC converters, reverse battery protection, battery chargers and adaptors.
