STPS40L45CW, STPS40L45CG - Low drop power Schottky rectifier

STMicroelectronics

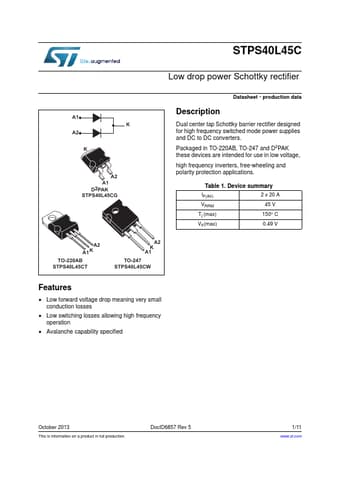

The STPS40L45CW by STMicroelectronics is a Low drop power Schottky rectifier. Below is the official datasheet preview.

Datasheet Details

Part number	STPS40L45CW, STPS40L45CG
Manufacturer	STMicroelectronics
File Size	180.36 KB
Description	Low drop power Schottky rectifier
Datasheet	STPS40L45CG_STMicroelectronics.pdf
Note	This datasheet PDF includes multiple part numbers: STPS40L45CW, STPS40L45CG. Please refer to the document for exact specifications by model.
Additional preview pages of the STPS40L45CW datasheet.

Dual center tap Schottky barrier rectifier designed for high frequency switched mode power supplies and DC to DC converters.

Low forward voltage drop meaning very small conduction losses.
Low switching losses allowing high frequency operation.
Avalanche capability specified October 2013 This is information on a product in full production. DocID6857 Rev 5 1/11 www. st. com Characteristics 1 Characteristics STPS40L45C Table 2. Absolute Ratings (limiting values, per diode) Symbol Parameter Value Unit VRRM Repetitive peak reverse voltage IF(RMS) Forward rms current IF(AV) Average forward current.
