STPS360-Y - Automotive power Schottky rectifier

Description

This high voltage Schottky barrier rectifier device is packaged in SOD128Flat and designed for high frequency miniature switched mode power supplies and on board DC to DC converters for automotive applications.

Features

  • Negligible switching losses.
  • High junction temperature capability.
  • Low leakage current.
  • Good trade-off between leakage current and forward voltage drop.
  • Avalanche specification.

📥 Download Datasheet

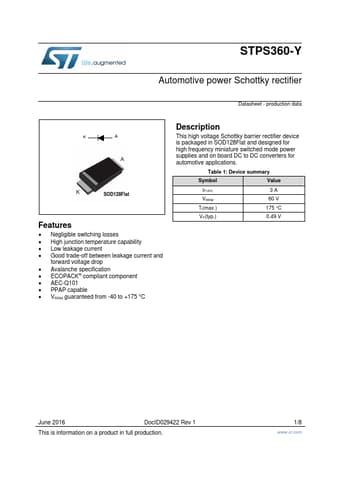

Datasheet preview – STPS360-Y

Datasheet Details

Part number STPS360-Y
Manufacturer STMicroelectronics
File Size 242.81 KB
Description Automotive power Schottky rectifier
Datasheet download datasheet STPS360-Y Datasheet
Additional preview pages of the STPS360-Y datasheet.

📁 Similar Datasheet

  • STPS360B - POWER SCHOTTKY RECTIFIER (ST Microelectronics)
  • STPS30100ST - 100V Power Schottky Rectifier (ST Microelectronics)
  • STPS30120C - Power Schottky Rectifier (ST Microelectronics)
  • STPS30120DJF - Low drop power Schottky rectifier (ST Microelectronics)
  • STPS30150C - High voltage power Schottky rectifier (ST Microelectronics)
  • STPS30150CFP - High voltage power Schottky rectifier (ST Microelectronics)
  • STPS30150CFP - Schottky Barrier Rectifier (INCHANGE)
  • STPS30150CT - High voltage power Schottky rectifier (ST Microelectronics)
  • STPS30150CT - Schottky Barrier Rectifier (INCHANGE)
  • STPS30150CW - High voltage power Schottky rectifier (ST Microelectronics)
Other Datasheets by STMicroelectronics

Full PDF Text Transcription

Click to expand full text
STPS360-Y Automotive power Schottky rectifier Datasheet - production data KA SOD128Flat Features  Negligible switching losses  High junction temperature capability  Low leakage current  Good trade-off between leakage current and forward voltage drop  Avalanche specification  ECOPACK® compliant component  AEC-Q101  PPAP capable  VRRM guaranteed from -40 to +175 °C Description This high voltage Schottky barrier rectifier device is packaged in SOD128Flat and designed for high frequency miniature switched mode power supplies and on board DC to DC converters for automotive applications. Table 1: Device summary Symbol Value IF(AV) 3A VRRM 60 V Tj(max.) VF(typ.) 175 °C 0.49 V June 2016 DocID029422 Rev 1 This is information on a product in full production. 1/8 www.st.
