STPS1L30MF Low drop power Schottky rectifier

STPS1L30MF Description

STPS1L30MF Low drop power Schottky rectifier in flat package Main product characteristics IF(AV) VRRM Tj (max) www.DataSheet4U.com VF (max) A 1A 30 .
Single Schottky rectifier suited for switch mode power supplies and high frequency DC to DC converters.

STPS1L30MF Features

* Very low profile package: 0.85 mm Backward compatible with standard STmite footprint Very small conduction losses Negligible switching losses Extremely fast switching Low forward voltage drop for higher efficiency and extended battery life Low thermal

STPS1L30MF Applications

* Due to the very small size of the package this device fits battery powered equipment (cellular, notebook, PDA’s, printers) as well as chargers and PCMCIA cards. Order Code Part number STPS1L30MF Marking F1L3 Table 1. Symbol VRRM IF(RMS) IF(AV) IFSM PARM Tstg Tj dV/dt 1. dPtot

📥 Download Datasheet

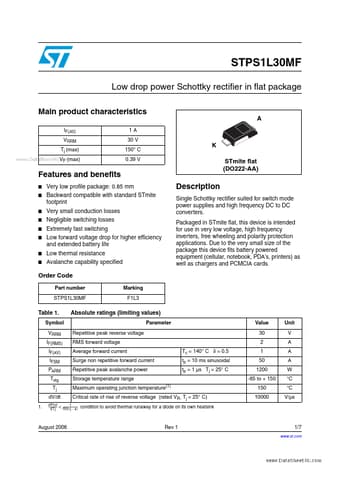

Preview of STPS1L30MF PDF
datasheet Preview Page 2 datasheet Preview Page 3
