STPS10H100CT, STPS10H100C High voltage power Schottky rectifier

STPS10H100CT Description

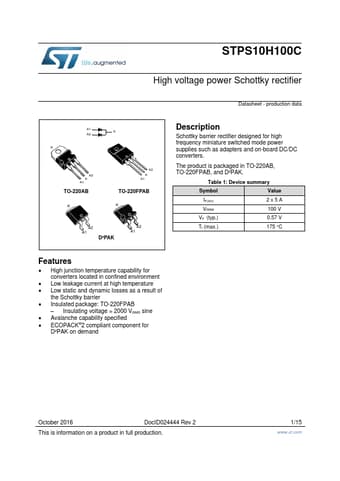

STPS10H100C High voltage power Schottky rectifier Datasheet - production data A1 K A2 K A2 K A1 TO-220AB K A2 K A1 TO-220FPAB K A2 A1 D²PAK A2 .
Schottky barrier rectifier designed for high frequency miniature switched mode power supplies such as adapters and on-board DC/DC converters.

STPS10H100CT Features

* High junction temperature capability for converters located in confined environment
* Low leakage current at high temperature
* Low static and dynamic losses as a result of the Schottky barrier
* Insulated package: TO-220FPAB  Insulating voltage = 2000 VRMS sine
* Avalanche ca

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STPS10H100CT, STPS10H100C. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STPS10H100CT, STPS10H100C
Manufacturer
STMicroelectronics ↗
File Size
434.29 KB
Datasheet
STPS10H100C-STMicroelectronics.pdf
Description
High voltage power Schottky rectifier
Note
This datasheet PDF includes multiple part numbers: STPS10H100CT, STPS10H100C.
Please refer to the document for exact specifications by model.
