STPS10150CT - High voltage power Schottky rectifier

This page provides the datasheet information for the STPS10150CT, a member of the STPS10150C High voltage power Schottky rectifier family.

Description

This dual center tab Schottky rectifier is suited for high frequency switched mode power supplies.

Table 1.

$ .

Features

  • High junction temperature capability.
  • Good trade off between leakage current and forward voltage drop.
  • Low leakage current.
  • Avalanche capability specified.
  • Insulated package:.
  • TO-220FPAB insulating voltage = 2000VRMS sine.

📥 Download Datasheet

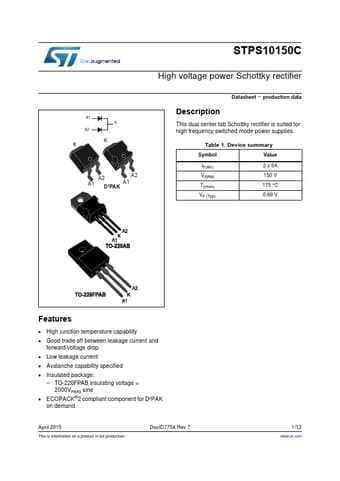

Datasheet preview – STPS10150CT

Datasheet Details

Part number STPS10150CT
Manufacturer STMicroelectronics
File Size 233.91 KB
Description High voltage power Schottky rectifier
Datasheet download datasheet STPS10150CT Datasheet
Additional preview pages of the STPS10150CT datasheet.
