STPLED625 - N-channel Power MOSFET

Description

These Power MOSFETs boast extremely low onresistance and very good dv/dt capability, rendering them suitable for buck-boost and flyback topologies.

Table 1.

Features

  • Order codes VDS RDS(on) max ID PTOT uct(s)1 2 3 rodI²PAKFP TAB 3 2 1 TO-220 olete PFigure 1. Internal schematic diagram bsD(2,TAB) ct(s) - OG(1) lete ProduS(3) Obso AM01476v1 STFILED625 620 V STPLED625 1.6 Ω 25 W 5.0 A 70 W.
  • 100% avalanche tested.
  • Extremely high dv/dt capability.
  • Gate charge minimized.
  • Very low intrinsic capacitance.
  • Improved diode reverse recovery characteristics.
  • Zener-protected.

📥 Download Datasheet

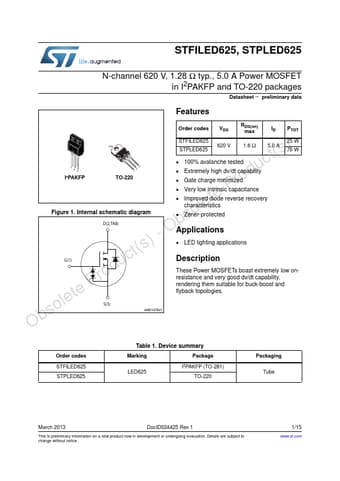

Datasheet preview – STPLED625

Datasheet Details

Part number STPLED625
Manufacturer STMicroelectronics
File Size 676.65 KB
Description N-channel Power MOSFET
Datasheet download datasheet STPLED625 Datasheet
Additional preview pages of the STPLED625 datasheet.
