STP8NM60FP, STP8NM60 N-CHANNEL MOSFET

STP8NM60FP Description

STP8NM60 - STP8NM60FP STB8NM60 - STD5NM60 - STD5NM60-1 N-CHANNEL 650V@Tjmax-0.9Ω-8A TO-220/FP/D/IPAK/D²PAK STripFET™ II MOSFET Table 1: General Featur.
The MDmesh™ is a new revolutionary MOSFET technology that associates the Multiple Drain process with the Company’s PowerMESH™ horizontal layout.

STP8NM60FP Features

* TYPE STP8NM60 STP8NM60FP STD5NM60 STD5NM60-1 STB8NM60 s s s s Figure 1: Package ID 8A 8 A(
* ) 5A 5A 5A Pw 100 W 30 W 96 W 96 W 96 W 1Ω 1Ω 1Ω 1Ω 1Ω VDSS 650 V 650 V 650 V 650 V 650 V RDS(on) < < < < < 3 1 2 s TYPICAL RDS(on) = 0.9 Ω HIGH dv/dt AND AVALANCHE CAPABILITIES 100% AVALANCHE TESTED

STP8NM60FP Applications

* The MDmesh™ family is very suitable for increase the power density of high voltage converters allowing system miniaturization and higher efficiencies. Table 2: Order Codes Sales Type STP8NM60 STP8NM60FP STD5NM60 STD5NM60-1 STB8NM60 Marking P8NM60 P8NM60FP D5NM60 D5NM60 B8NM60 Package TO-220 TO-220F

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STP8NM60FP, STP8NM60. Please refer to the document for exact specifications by model.

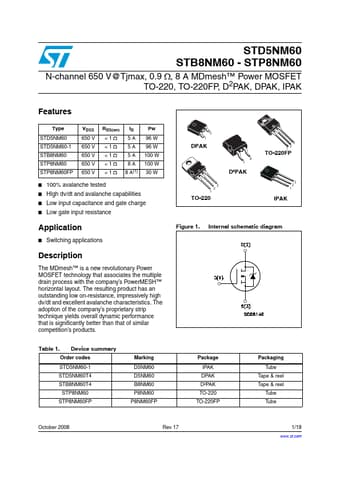

datasheet Preview Page 2 datasheet Preview Page 3
