STP5N95K5 N-channel Power MOSFET

STP5N95K5 Description

STP5N95K5 Datasheet N-channel 950 V, 2.0 Ω typ., 3.5 A MDmesh K5 Power MOSFET in a TO-220 package .
S(3) This very high voltage N-channel Power MOSFET is designed using MDmesh AM01476v1_tab K5 technology based on an innovative proprietary vertical.

STP5N95K5 Features

* TAB TO-220 1 23 D(2, TAB) Order code VDS STP5N95K5 950 V
* Industry’s lowest RDS(on) x area
* Industry’s best FoM (figure of merit)
* Ultra-low gate charge
* 100% avalanche tested

STP5N95K5 Applications

* RDS(on) max. 2.5 Ω ID 3.5 A G(1)

📥 Download Datasheet

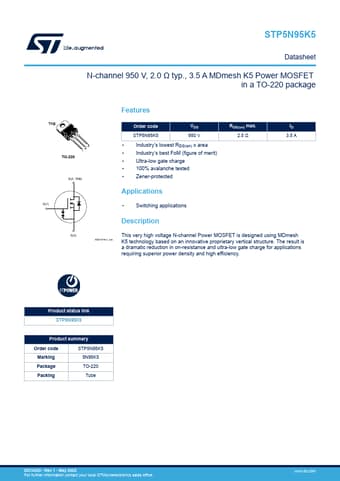

Preview of STP5N95K5 PDF
datasheet Preview Page 2 datasheet Preview Page 3
