STP33N60DM6 - N-channel MOSFET

Description

This high-voltage N-channel Power MOSFET is part of the MDmesh™ DM6 fastrecovery diode series.

Features

  • Order code VDS RDS(on) max. STP33N60DM6 600 V 128 mΩ.
  • Fast-recovery body diode.
  • Lower RDS(on) per area vs previous generation.
  • Low gate charge, input capacitance and resistance.
  • 100% avalanche tested.
  • Extremely high dv/dt ruggedness.
  • Zener-protected ID 25 A.

📥 Download Datasheet

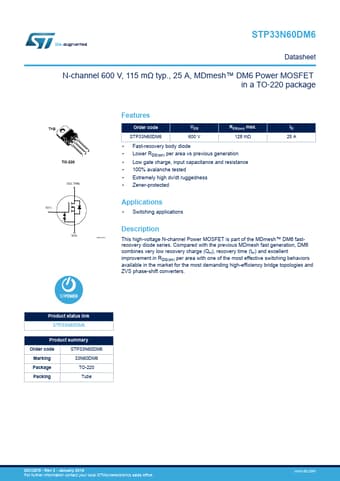

Datasheet preview – STP33N60DM6

Datasheet Details

Part number STP33N60DM6
Manufacturer STMicroelectronics
File Size 467.53 KB
Description N-channel MOSFET
Datasheet download datasheet STP33N60DM6 Datasheet
Additional preview pages of the STP33N60DM6 datasheet.

📁 Similar Datasheet

  • STP300NH02L - N-CHANNEL Power MOSFET (ST Microelectronics)
  • STP3010 - Graphics Accelerator (SUN MICROELECTRONICS)
  • STP3015L - N - CHANNEL POWER MOSFET (ST Microelectronics)
  • STP3020L - N - CHANNEL POWER MOSFET (ST Microelectronics)
  • STP3052D - MOSFET (Stanson Technology)
  • STP3055L2 - MOSFET (SamHop)
  • STP30N05 - N - CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTOR (ST Microelectronics)
  • STP30N06FI - N - CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTOR (ST Microelectronics)
  • STP30N10F7 - N-Channel MOSFET (INCHANGE)
  • STP30N65M5 - N-Channel MOSFET (INCHANGE)
Other Datasheets by STMicroelectronics

Full PDF Text Transcription

Click to expand full text
STP33N60DM6 Datasheet N-channel 600 V, 115 mΩ typ., 25 A, MDmesh™ DM6 Power MOSFET in a TO‑220 package TAB TO-220 1 23 D(2, TAB) G(1) S(3) AM01475V1 Features Order code VDS RDS(on) max. STP33N60DM6 600 V 128 mΩ • Fast-recovery body diode • Lower RDS(on) per area vs previous generation • Low gate charge, input capacitance and resistance • 100% avalanche tested • Extremely high dv/dt ruggedness • Zener-protected ID 25 A Applications • Switching applications Description This high-voltage N-channel Power MOSFET is part of the MDmesh™ DM6 fastrecovery diode series.
