STP17NK40ZFP, STP17NK40Z, N-CHANNEL Power MOSFET

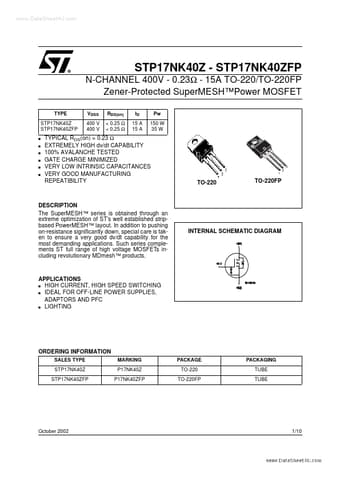

www.DataSheet4U.com N-CHANNEL 400V - 0.23Ω - 15A TO-220/TO-220FP Zener-Protected SuperMESH™Power MOSFET TYPE STP17NK40Z STP17NK40ZFP s s s s s s STP.
The SuperMESH™ series is obtained through an extreme optimization of ST’s well established stripbased PowerMESH™ layout.

STP17NK40Z_STMicroelectronics.pdf

STP17NK40ZFP Datasheet Preview — This datasheet PDF includes multiple part numbers: STP17NK40ZFP, STP17NK40Z. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

STP17NK40ZFP, STP17NK40Z

Manufacturer:

STMicroelectronics ↗

File Size:

304.18 KB

Description:

N-CHANNEL Power MOSFET

Note:

This datasheet PDF includes multiple part numbers: STP17NK40ZFP, STP17NK40Z.
Please refer to the document for exact specifications by model.

Features

* OF GATE-TO-SOURCE ZENER DIODES The built-in back-to-back Zener diodes have specifically been designed to enhance not only the device’s ESD capability, but also to make them safely absorb possible voltage transients that may occasionally be applied from gate to source. In this respect the Zener volta

Applications

* Such series complements ST full range of high voltage MOSFETs including revolutionary MDmesh™ products. INTERNAL SCHEMATIC DIAGRAM APPLICATIONS s HIGH CURRENT, HIGH SPEED SWITCHING s IDEAL FOR OFF-LINE POWER SUPPLIES, ADAPTORS AND PFC s LIGHTING ORDERING INFORMATION SALES TYPE STP17NK40Z STP17NK
