STP120N10F4 N-channel Power MOSFET

STP120N10F4 Description

STB120N10F4, STP120N10F4 N-channel 100 V, 8 mΩ typ., 120 A, STripFET™ DeepGATE™ 2 Power MOSFETs in D PAK and TO-220 packages Datasheet * produ.
These devices are N-channel Power MOSFETs developed using ST’s STripFET™ DeepGATE™ technology.

STP120N10F4 Features

* TAB 3 1 D 2PAK TAB 3 2 1 TO-220 Figure 1. Internal schematic diagram ' Ć7$%
*  Order codes VDS RDS(on) max. ID STB120N10F4 STP120N10F4 100 V 10 mΩ 120 A
* N-channel enhancement mode
* Very low on-resistance
* Low gate charge
* 100% avalanche rated

📥 Download Datasheet

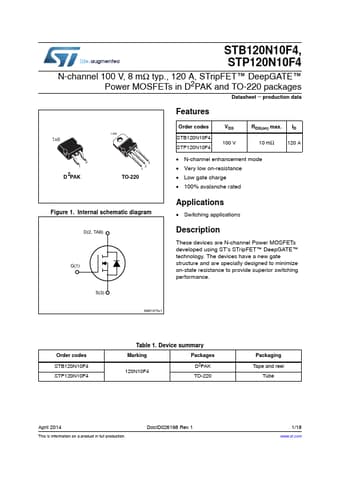

Preview of STP120N10F4 PDF
