STOD02 Dual DC-DC converter

STMicroelectronics

STOD02 Description

STOD02 Dual DC-DC converter for powering AMOLED display .
The STOD02 is a dual DC-DC converter meant to power AMOLED displays.

STOD02 Features

* Step-up and inverter converters
* Operating input voltage range from 2.5 V to 4.5 V
* Synchronous rectification for both DC-DC converters
* 150 mA maximum output current
* 4.6 V fixed positive output voltage
* Programmable negative voltage by S-wire from - 2.3 V to - 5.9 V

STOD02 Applications

* Active matrix organic LED power supply (AMOLED)
* Mobile phones DFN12L (3 x 3 mm)
* PDAs

📥 Download Datasheet

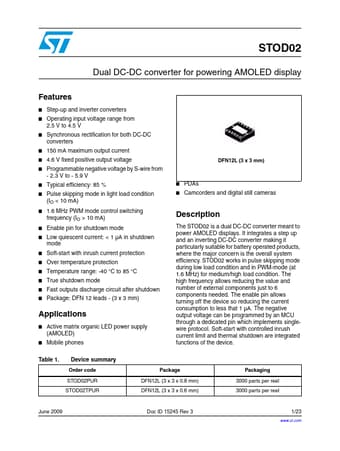

STOD02 Datasheet Preview — Preview of STOD02 PDF
