STLT20 - N-CHANNEL LOW THRESHOLD POWER MOS TRANSISTORS

📥 Download Datasheet

Datasheet preview – STLT20

Datasheet Details

Part number STLT20
Manufacturer STMicroelectronics
File Size 205.90 KB
Description N-CHANNEL LOW THRESHOLD POWER MOS TRANSISTORS
Datasheet download datasheet STLT20 Datasheet
Additional preview pages of the STLT20 datasheet.

📁 Similar Datasheet

  • STL-S3 - Stratum 3 Timing Module (Connor-Winfield)
  • STL-S3E - Stratum 3E Timing Module (Connor-Winfield)
  • STL03S03F - (STL03S03F - STL15S15F) 2W Single Output Surface Mount DC-DC Converter (Superworld Electronics)
  • STL03S05F - (STL03S03F - STL15S15F) 2W Single Output Surface Mount DC-DC Converter (Superworld Electronics)
  • STL03S09F - (STL03S03F - STL15S15F) 2W Single Output Surface Mount DC-DC Converter (Superworld Electronics)
  • STL03S12F - (STL03S03F - STL15S15F) 2W Single Output Surface Mount DC-DC Converter (Superworld Electronics)
  • STL03S15F - (STL03S03F - STL15S15F) 2W Single Output Surface Mount DC-DC Converter (Superworld Electronics)
  • STL05S03F - (STL03S03F - STL15S15F) 2W Single Output Surface Mount DC-DC Converter (Superworld Electronics)
  • STL05S05F - (STL03S03F - STL15S15F) 2W Single Output Surface Mount DC-DC Converter (Superworld Electronics)
  • STL05S09F - (STL03S03F - STL15S15F) 2W Single Output Surface Mount DC-DC Converter (Superworld Electronics)
Other Datasheets by STMicroelectronics

Full PDF Text Transcription

Click to expand full text

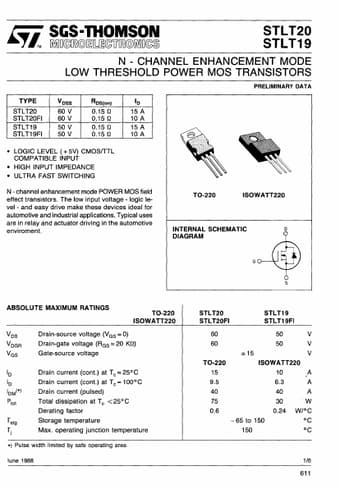

TYPE STLT20 STLT20FI STLT19 STLT19FI STLT20 STLT19 N - CHANNEL ENHANCEMENT MODE LOW THRESHOLD POWER MaS TRANSISTORS PRELIMINARY DATA Voss 60 V 60 V 50 V 50 V Ros(on) 0.150 0.150 0.150 0.150 10 15 A 10 A 15 A 10 A • LOGIC LEVEL ( + 5V) CMOSITTL COMPATIBLE INPUT • HIGH INPUT IMPEDANCE • ULTRA FAST SWITCHING N - channel enhancement mode POWER MOS field effect transistors. The low input voltage - logic level - and easy drive make these devices ideal for automotive and industrial applications. Typical uses are in relay and actuator driving in the automotive enviroment. TO-220 ISOWATT220 INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS TO-220 ISOWATT220 Drain-source voltage (VGS = 0) Drain-gate voltage (RGS =20 KO) Gate-source voltage Drai n cu rrent (cont.
