STL58N3LLH5 - N-channel Power MOSFET

STL58N3LLH5 Description

STL58N3LLH5 Automotive-grade N-channel 30 V, 0.0076 Ω typ., 56 A STripFET™ H5 Power MOSFET in a PowerFLAT™ 5x6 package Datasheet * production.
This device is an N-channel Power MOSFET developed using STMicroelectronics’ STripFET™ H5 technology.

STL58N3LLH5 Features

* 1 2 3 4 PowerFLAT™ 5x6 Order code STL58N3LLH5 VDS 30 V RDS(on) max 0.009 Ω ID 56 A

STL58N3LLH5 Applications

* and AEC-Q101 qualified
* Low on-resistance
* High avalanche ruggedness
* Low gate drive power loss
* Wettable flank package Figure 1. Internal schematic diagram '
*  Applications

📥 Download Datasheet

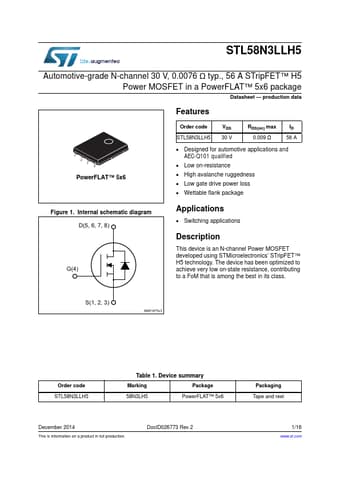

Preview of STL58N3LLH5 PDF
datasheet Preview Page 2 datasheet Preview Page 3
