STL36N55M5 - N-channel Power MOSFET

STL36N55M5 Description

STL36N55M5 N-channel 550 V, 0.066 Ω typ., 22.5 A MDmesh™ V Power MOSFET in a PowerFLAT™ 8x8 HV package Datasheet * production data .
This device is an N-channel MDmesh™ V Power MOSFET based on an innovative proprietary vertical process technology, which is combined with STMicroelect.

STL36N55M5 Features

* Order code STL36N55M5 VDS @ TJmax 600 V RDS(on) max 0.090 Ω ID 22.5 A(1) ' $ 3 3 3 "OTTOMVIEW 1. The value is rated according to Rthj-case and limited by package.
* 100% avalanche tested Low input capacitance and gate charge Low gate input resistance 0OWER&,!4˜X

📥 Download Datasheet

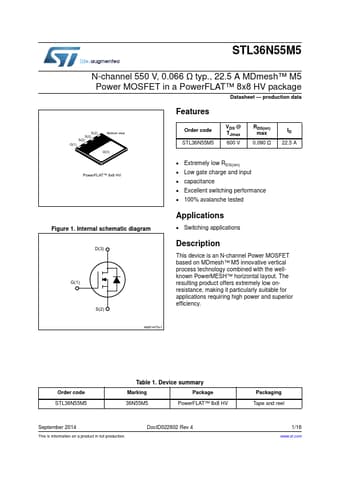

Preview of STL36N55M5 PDF
