STL35N15F3 - N-channel 150 V 0.0355 7A STripFET III Power MOSFET

STMicroelectronics

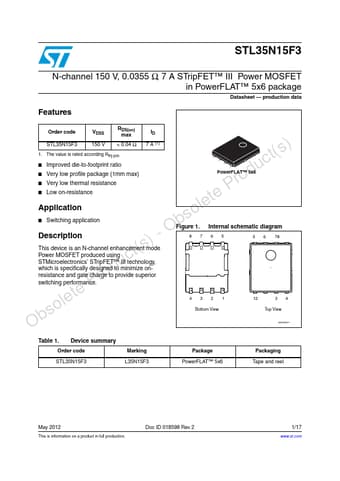

STL35N15F3 Datasheet Preview — Preview of STL35N15F3 PDF

Datasheet Details

Part number	STL35N15F3
Manufacturer	STMicroelectronics ↗
File Size	564.44 KB
Description	N-channel 150 V 0.0355 7A STripFET III Power MOSFET
Datasheet	STL35N15F3-STMicroelectronics.pdf

STL35N15F3 Product details

Description

This device is an N-channel enhancement mode Power MOSFET produced using STMicroelectronics’ STripFET™ III technology, which is specifically designed to minimize onresistance and gate charge to provide superior switching performance.

Features

Order code STL35N15F3 VDSS 150 V RDS(on) max < 0.04 Ω ID 7 A (1) 1 2 1. The value is rated according Rthj-pcb.
Improved die-to-footprint ratio Very low profile package (1mm max) Very low thermal resistance Low on-resistance 3 4.
