STL19N3LLH6AG N-channel Power MOSFET

STL19N3LLH6AG Description

STL19N3LLH6AG Datasheet Automotive-grade N-channel 30 V, 23 mΩ typ., 10 A, STripFET™ H6 Power MOSFET in a PowerFLAT 5x6 package 4 3 2 1 PowerFLAT™ 5.
This device is an N-channel Power MOSFET developed using the STripFET™ H6 technology with a new trench gate structure.

STL19N3LLH6AG Features

* Order code VDS STL19N3LLH6AG 30 V
* AEC-Q101 qualified
* Very low on-resistance
* Very low gate charge
* High avalanche ruggedness
* Low gate drive power loss
* Logic level
* Wettable flank package RDS(on) max. 33 mΩ ID 10 A PTOT 50 W

📥 Download Datasheet

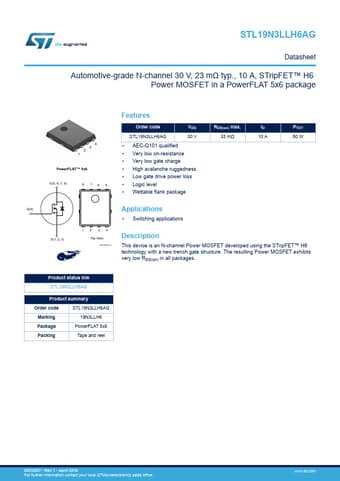

Preview of STL19N3LLH6AG PDF
