STL18N65M2 - N-channel Power MOSFET

STL18N65M2 Description

STL18N65M2 N-channel 650 V, 0.290 Ω typ., 8 A MDmesh™ M2 Power MOSFET in a PowerFLAT™ 5x6 HV package Datasheet - preliminary data .
This device is an N-channel Power MOSFET developed using MDmesh™ M2 technology.

STL18N65M2 Features

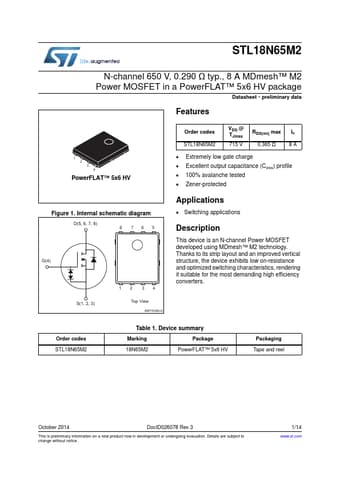

* 1 2 3 4 PowerFLAT™ 5x6 HV Figure 1. Internal schematic diagram D(5, 6, 7, 8) 8 76 5 G(4) S(1, 2, 3) 12 34 Top View AM15540v3 Order codes STL18N65M2 VDS @ TJmax 715 V RDS(on) max 0.365 Ω ID 8A
* Extremely low gate charge
* Excellent output capacitance (Coss) profile
