STL16N60M6 N-channel Power MOSFET

STL16N60M6 Description

STL16N60M6 N-channel 600 V, 0.30 Ω typ., 8 A MDmesh™ M6 Power MOSFET in a PowerFLAT™ 5x6 HV package Datasheet - production data .
The new MDmesh™ M6 technology incorporates the most recent advancements to the well-known and consolidated MDmesh family of SJ MOSFETs.

STL16N60M6 Features

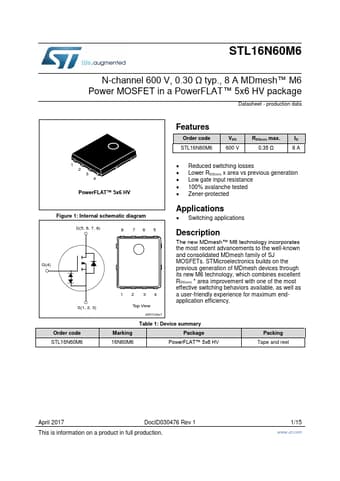

* Order code STL16N60M6 VDS 600 V RDS(on) max. 0.35 Ω ID 8A 1 2 3 4 PowerFLAT™ 5x6 HV Figure 1: Internal schematic diagram D(5, 6, 7, 8) 8 76 5 G(4) S(1, 2, 3) 12 34 Top View
* Reduced switching losses
* Lower RDS(on) x area vs previous generation
* Low gate input resistance
