STL15N60M2-EP N-channel Power MOSFET

STL15N60M2-EP Description

STL15N60M2-EP N-channel 600 V, 0.389 Ω typ., 7 A MDmesh™ M2 EP Power MOSFET in a PowerFLAT™ 5x6 HV package Datasheet - production data 1 2 3 4 Power.
This device is an N-channel Power MOSFET developed using MDmesh™ M2 EP enhanced performance technology.

STL15N60M2-EP Features

* Order code STL15N60M2-EP VDS @ TJmax RDS(on) max. ID PTOT 650 V 0.418 Ω 7 A 55 W
* Extremely low gate charge
* Excellent output capacitance (COSS) profile
* Very low turn-off switching losses
* 100% avalanche tested

STL15N60M2-EP Applications

* Switching applications

📥 Download Datasheet

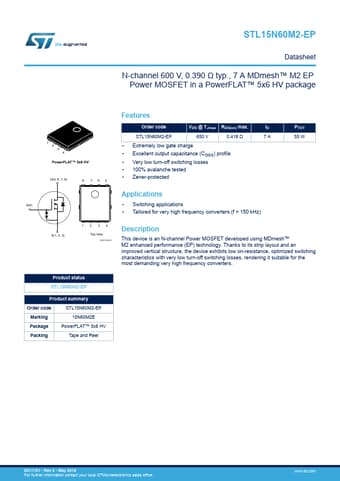

Preview of STL15N60M2-EP PDF
datasheet Preview Page 2 datasheet Preview Page 3
