STI26NM60N, N-channel Power MOSFET

STB26NM60N, STF26NM60, STI26NM60N, STP26NM60N, STW26NM60N N-channel 600 V, 0.135 Ω , 20 A MDmesh™ II Power MOSFET 2 2 in D PAK, I PAK, TO-220, TO-220F.
These devices are N-channel Power MOSFETs developed using the second generation of MDmesh™ technology.

STI26NM60N-STMicroelectronics.pdf

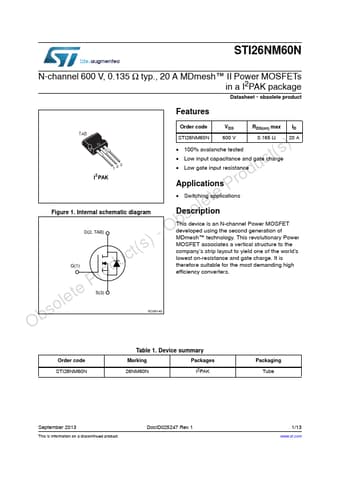

STI26NM60N Datasheet Preview — Preview of STI26NM60N PDF

Datasheet Details

Part number:

STI26NM60N

Manufacturer:

STMicroelectronics ↗

File Size:

715.01 KB

Description:

N-channel Power MOSFET

Features

* Type STB26NM60N STF26NM60N STI26NM60N STP26NM60N STW26NM60N
* TAB TAB VDSS 600 V 600 V 600 V 600 V 600 V RDS(on) max < 0.165 Ω < 0.165 Ω < 0.165 Ω < 0.165 Ω < 0.165 Ω ID 3 20 A 20 A 20 A 20 A 20 A TAB 1 2 3 12 3 1 2 TO-220FP I²PAK TO-220 100% avalanche tested Low input
