STHS4257L, STHS4257A - IEEE 802.3af PoE Powered Device (PD) interface controller

STMicroelectronics

The STHS4257L by STMicroelectronics is a IEEE 802.3af PoE Powered Device (PD) interface controller. Below is the official datasheet preview.

📥 Download Datasheet

STHS4257L IEEE 802.3af PoE Powered Device (PD) interface controller by STMicroelectronics - Datasheet Preview — Official preview page of the **STHS4257L** IEEE 802.3af PoE Powered Device (PD) interface controller datasheet (STMicroelectronics).

Datasheet Details

Part number	STHS4257L, STHS4257A
Manufacturer	STMicroelectronics
File Size	229.44 KB
Description	IEEE 802.3af PoE Powered Device (PD) interface controller
Datasheet	STHS4257A_STMicroelectronics.pdf
Note	This datasheet PDF includes multiple part numbers: STHS4257L, STHS4257A. Please refer to the document for exact specifications by model.

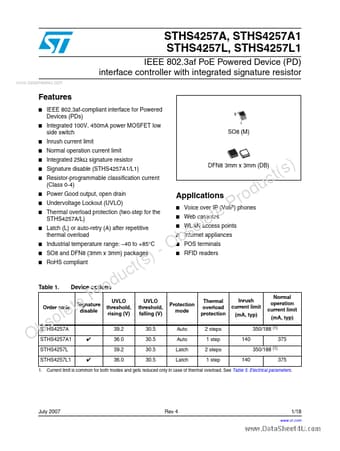

Additional preview pages of the STHS4257L datasheet.

STHS4257L Product details

Description

5 1.1 Pin descriptions 7 1.1.1 1.1.2 1.1.3 1.1.4 1.1.5 1.1.6 Classification (RCLASS) . .

Features

IEEE 802.3af-compliant interface for Powered Devices (PDs) Integrated 100V, 450mA power MOSFET low side switch Inrush current limit Normal operation current limit Integrated 25kΩ signature resistor Signature disable (STHS4257A1/L1) Resistor-programmable classification current (Class 0-4) Power Good output, open drain Undervoltage Lockout (UVLO) Thermal overload protection (two-step for the STHS4257A/L) Latch (L).
