STHS2377A, STHS2375A IEEE 802.3af PoE Powered Device (PD) interface controller

STHS2377A Description

STHS2375A, STHS2375L, STHS2376A, STHS2376L, STHS2377A, STHS2377L IEEE 802.3af PoE Powered Device (PD) interface controller www.datasheet4u.com Featur.
5 1.

STHS2377A Features

* IEEE 802.3af-compliant interface for Powered Devices (PDs) Integrated 100V, 500mA power MOSFET Resistor-programmable inrush current limit Normal operation current limit 460mA External 25kΩ signature resistor Resistor-prog

STHS2377A Applications

* Voice over IP (VOIP) phones Web cameras WLAN access points Internet appliances POS terminals RFID readers Table 1. Order code STHS2375A STHS2375L STHS2376A STHS2376L STHS2377A STHS2377L UVLO threshold, falling (V) 30.5 30.5 1.93 1.93 30.5 30.5 Protection mode

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STHS2377A, STHS2375A. Please refer to the document for exact specifications by model.

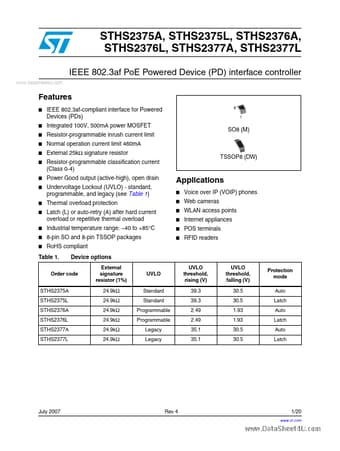

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STHS2377A, STHS2375A
Manufacturer
STMicroelectronics ↗
File Size
224.65 KB
Datasheet
STHS2375A_STMicroelectronics.pdf
Description
IEEE 802.3af PoE Powered Device (PD) interface controller
Note
This datasheet PDF includes multiple part numbers: STHS2377A, STHS2375A.
Please refer to the document for exact specifications by model.
