STGW20H60DF 600V 20A high speed trench gate field-stop IGBT

STMicroelectronics

STGW20H60DF Description

TAB 3 2 1 TO-247 TO-3P 3 2 1 Figure 1.Internal schematic diagram C (2, TAB) G (1) STGW20H60DF, STGWT20H60DF 600 V, 20 A high speed trench gate f.
This device is an IGBT developed using an advanced proprietary trench gate and field stop structure.

STGW20H60DF Features

* High speed switching
* Tight parameters distribution
* Safe paralleling
* Low thermal resistance
* Short-circuit rated

STGW20H60DF Applications

* Motor control

📥 Download Datasheet

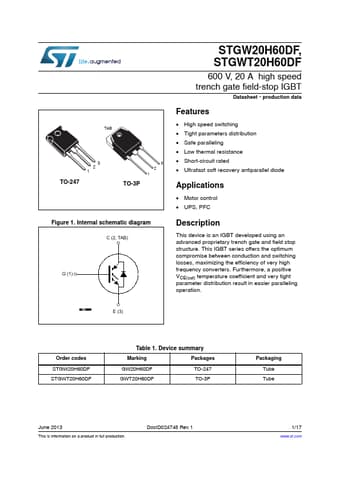

STGW20H60DF Datasheet Preview — Preview of STGW20H60DF PDF

Datasheet Details

Part number: STGW20H60DF
Manufacturer: STMicroelectronics ↗
File Size: 1.26 MB
Datasheet: STGW20H60DF-STMicroelectronics.pdf
Description: 600V 20A high speed trench gate field-stop IGBT
