STGIPS15C60T-H IGBT

STGIPS15C60T-H Description

STGIPS15C60T-H SLLIMM™ small low-loss intelligent molded module IPM, 3-phase inverter - 15 A, 600 V short-circuit rugged IGBT Datasheet - production .
This intelligent power module provides a compact, high performance AC motor drive in a simple, rugged design.

STGIPS15C60T-H Features

* IPM 15 A, 600 V 3-phase IGBT inverter bridge including control ICs for gate driving and freewheeling diodes
* Short-circuit rugged IGBTs
* 3.3 V, 5 V, 15 V CMOS/TTL inputs comparators with hysteresis and pull-down / pull-up resistors
* Undervoltage lockout

STGIPS15C60T-H Applications

* 3-phase inverters for motor drives

📥 Download Datasheet

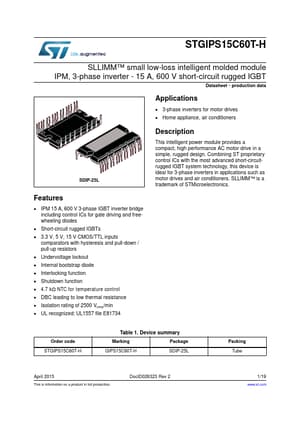

Preview of STGIPS15C60T-H PDF
