STGD3NC60HD, N-CHANNEL 3A - 600V DPAK Very Fast PowerMESH IGBT

STGD3NC60HD www.DataSheet4U.com N-CHANNEL 3A - 600V DPAK Very Fast PowerMESH™ IGBT TARGET SPECIFICATION Table 1: General .
Using the latest high voltage technology based on a patented strip layout, STMicroelectronics has designed an advanced family of IGBTs, the PowerMESH™.

STGD3NC60HD_STMicroelectronics.pdf

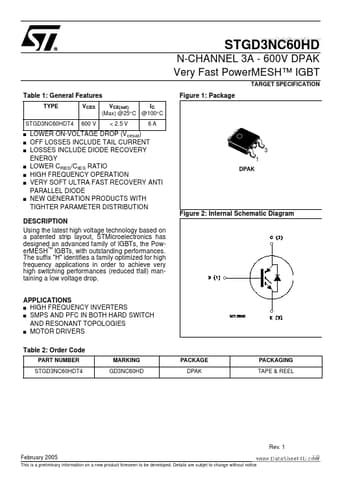

STGD3NC60HD Datasheet Preview — Preview of STGD3NC60HD PDF

Datasheet Details

Part number:

STGD3NC60HD

Manufacturer:

STMicroelectronics ↗

File Size:

238.00 KB

Description:

N-CHANNEL 3A - 600V DPAK Very Fast PowerMESH IGBT

Features

* TYPE STGD3NC60HDT4 s s s Figure 1: Package VCES 600 V VCE(sat) IC (Max) @25°C @100°C < 2.5 V 6A s s s s LOWER ON-VOLTAGE DROP (Vcesat) OFF LOSSES INCLUDE TAIL CURRENT LOSSES INCLUDE DIODE RECOVERY ENERGY LOWER CRES/CIES RATIO HIGH FREQUENCY OPERATION VERY SOFT ULTRA FAST RECOVERY ANTI PARALLEL

Applications

* in order to achieve very high switching performances (reduced tfall) mantaining a low voltage drop. APPLICATIONS HIGH FREQUENCY INVERTERS s SMPS AND PFC IN BOTH HARD SWITCH AND RESONANT TOPOLOGIES s MOTOR DRIVERS s Table 2: Order Code PART NUMBER STGD3NC60HDT4 MARKING GD3NC60HD PACKAGE DPAK PACKAG
