STGD10NC60KD, STGB10NC60KD, 600V short-circuit rugged IGBT

STGB10NC60KD, STGD10NC60KD STGF10NC60KD, STGP10NC60KD 10 A, 600 V short-circuit rugged IGBT .
This IGBT utilizes the advanced PowerMESH™ process resulting in an excellent trade-off between switching performance and low on-state behavior.

STGB10NC60KD_STMicroelectronics.pdf

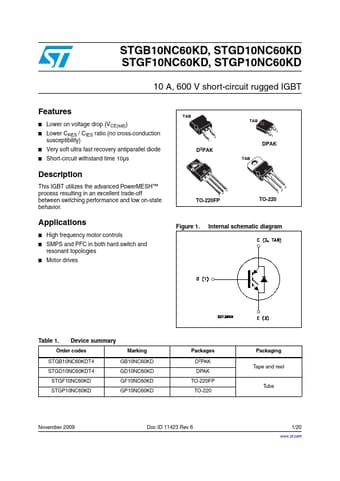

STGD10NC60KD Datasheet Preview — This datasheet PDF includes multiple part numbers: STGD10NC60KD, STGB10NC60KD. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

STGD10NC60KD, STGB10NC60KD

Manufacturer:

STMicroelectronics ↗

File Size:

522.62 KB

Description:

600V short-circuit rugged IGBT

Note:

This datasheet PDF includes multiple part numbers: STGD10NC60KD, STGB10NC60KD.
Please refer to the document for exact specifications by model.

Features

* Lower on voltage drop (VCE(sat))
* Lower CRES / CIES ratio (no cross-conduction susceptibility)
* Very soft ultra fast recovery antiparallel diode

Applications

* High frequency motor controls
* SMPS and PFC in both hard switch and resonant topologies
* Motor drives TAB 3 1 D2PAK TAB 3 1 DPAK TAB 3 2 1 TO-220FP 3 2 1 TO-220 Figure 1. Internal schematic diagram Table 1. Device summary Order codes Marking STGB10NC60KDT4 GB10NC60KD STGD1
